Automatic Beer Filling Production Line for Brewery Bottling
The beer filling production line is designed for automated beer filling and packaging, integrating processes such as washing, filling, capping, and labeling into a single system. It features high efficiency, stability, and precise filling, making it suitable for breweries, craft beer facilities, and beverage companies.
- Capacity: 2000-24000BPH
- Filling Nozzles: 4/6/8/10 pcs (customized)
- Filling volume: 200ml-2000ml
- Filling Speed: 2000-4000 Bottles/H
- Bottle Type: PET Plastic Bottle / Glass Bottle
Price: $12,500–$15,500
Introduction

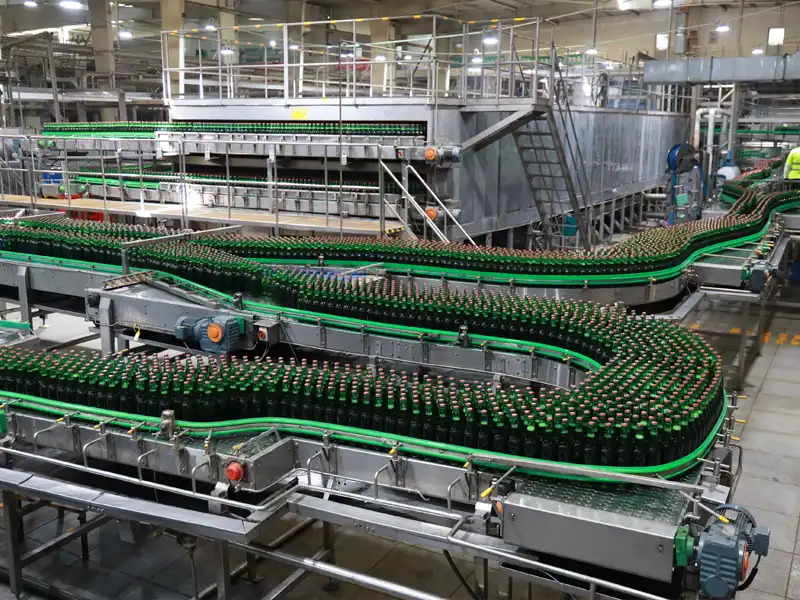

The beer filling production line, also known as the beer bottling line, features a linear, downstream layout, with a single unit capable of filling up to 12,000 bottles per hour. It integrates bottle washing, filling, capping, sterilization, labeling, and case packing into a single system. The entire process operates in a sealed, oxygen-controlled environment, precisely regulating the dissolved carbon dioxide content in the bottles. It is suitable for the continuous, large-scale production of beer in various sizes of glass bottles and aluminum cans, significantly reducing oxidation of the beer and hygiene risks associated with manual intervention.
Structure beer filling production line
- Bottle Washing Unit
Performs high-temperature washing and sterile drying of empty bottles to ensure compliance with basic hygiene standards for filling - Isobaric Filling Machine

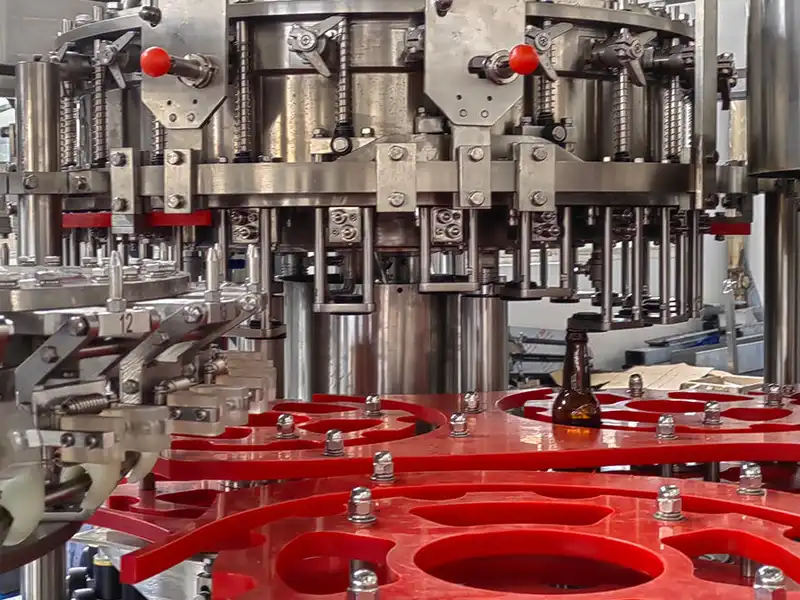

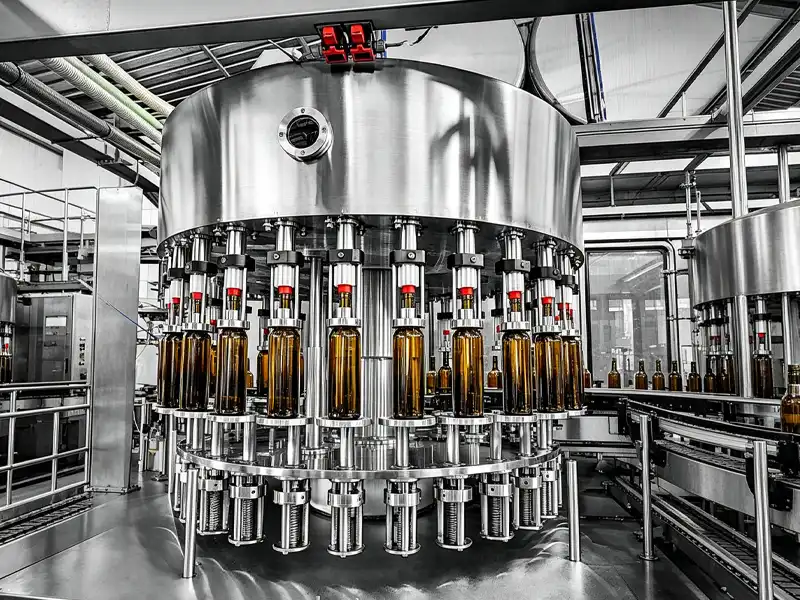

Uses an isobaric filling process to stably control the carbonation level of the beer, with a filling capacity of 10,000 bottles per hour - Capping Machine
Seals and caps the filled bottles to isolate them from air and prevent beer oxidation and spoilage - Pasteurization Tunnel

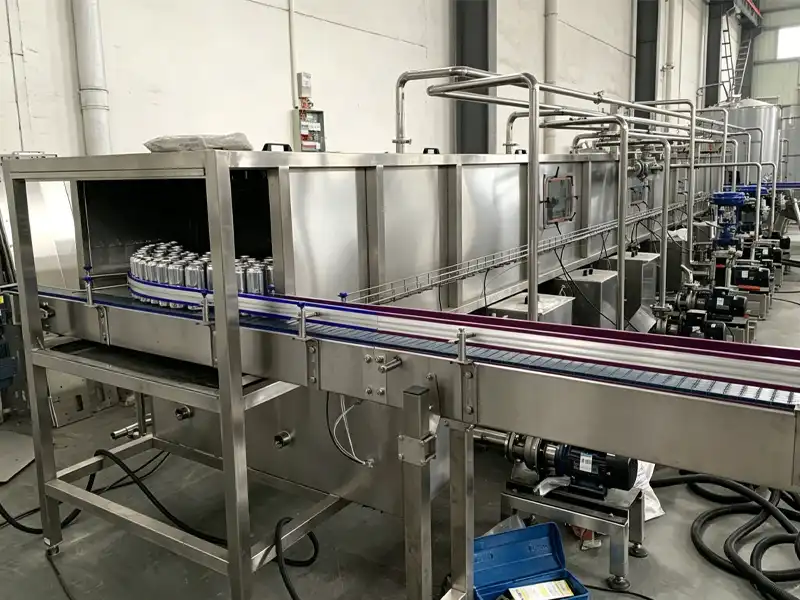

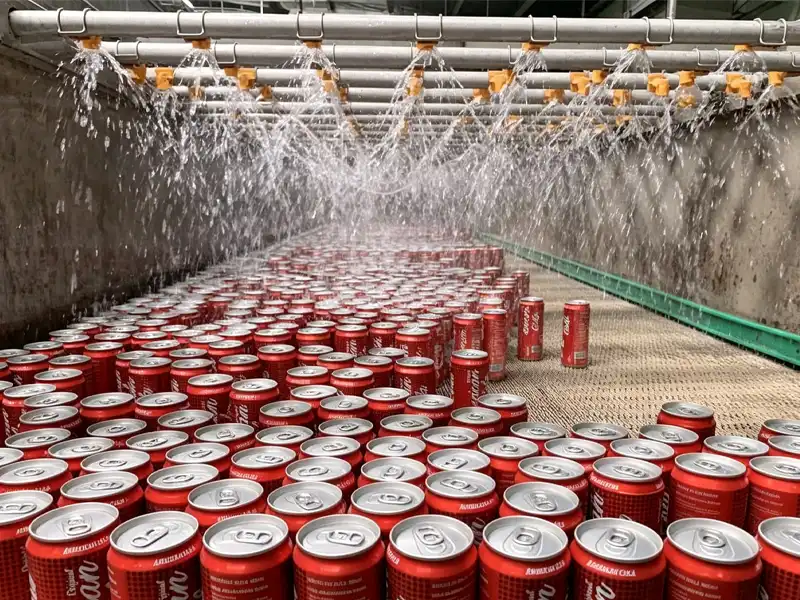

Low-temperature, constant-temperature pasteurization extends the shelf life of the finished beer - Fully Automatic Labeling Equipment
Precisely positions and applies labels to bottles, compatible with a variety of bottle shapes and sizes - Conveyor and Sorting System
Ensures seamless material transfer throughout the line, linking all processes to achieve a downstream assembly line layout
Types of beer filling production lines
Edible oil filling production lines can be categorized into small-scale lines, PET bottle lines, and glass bottle lines, meeting customers’ specific production and application requirements.
Automatic Beer Filling Production Line

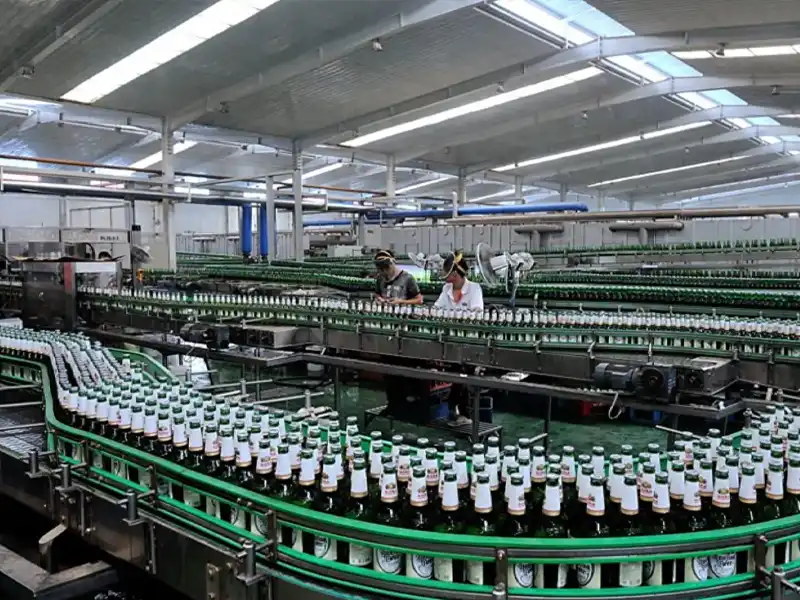

An automatic beer filling production line designed for continuous production in large-scale breweries.
Small Brewery Filling Line

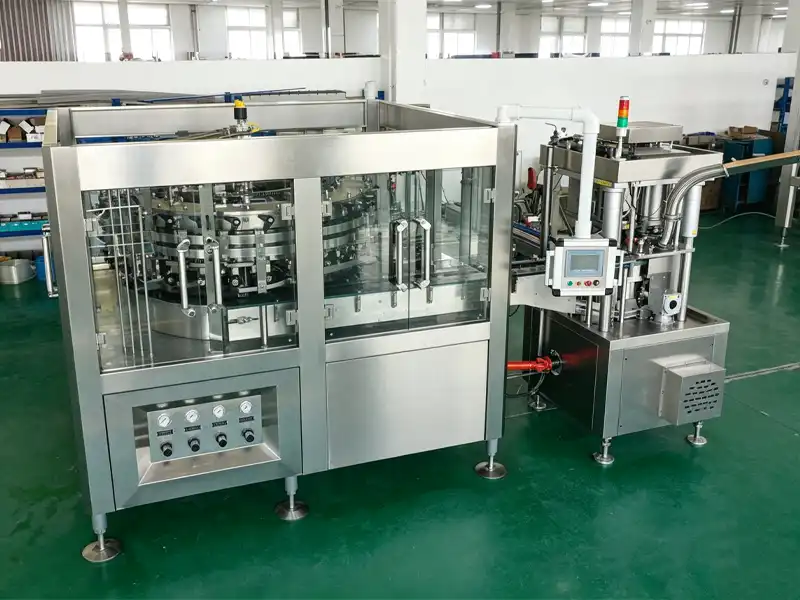

Suitable for small- and medium-sized breweries, featuring a compact footprint and flexible operation.
Craft Beer Filling Production Line
Designed to meet the packaging needs of craft beer with multiple varieties and small batches.
Glass Bottle Beer Filling Line
Glass bottle beer filling line, suitable for bottled beer production.

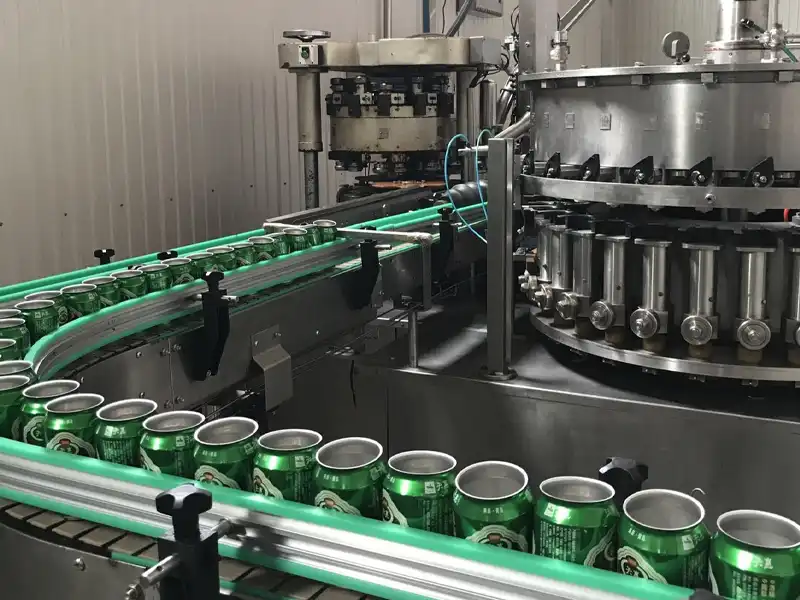

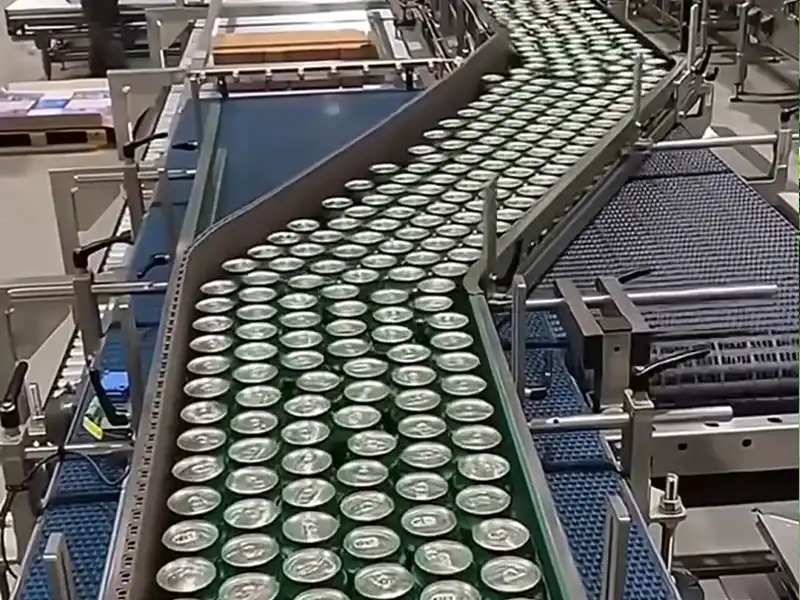

Beer Canning Production Line
Designed for the automated production of canned beer, improving packaging efficiency.
High Speed Beer Bottling Line
Designed for large-scale industrial beer production, meeting the demands of high-capacity, continuous operation.
Working Principle beer filling production line

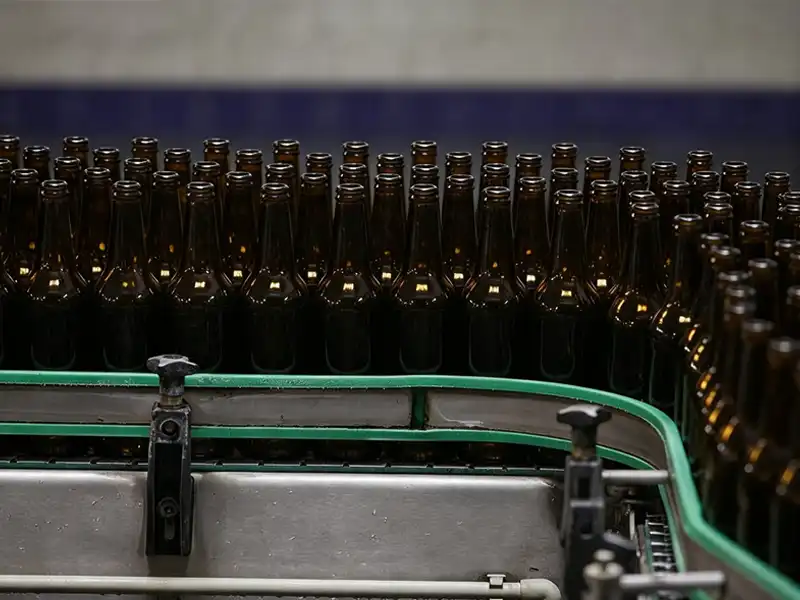

- Empty Bottle Conveyance and Inspection
Empty bottles enter the production line via the conveyor system, where the equipment automatically inspects the bottle shape and neck condition to ensure stable operation during subsequent filling. - Bottle Cleaning and Disinfection
The rinsing system cleans the empty bottles to remove impurities and residues, meeting the hygiene requirements for beer filling. - CO₂ Purge
Carbon dioxide is injected into the bottles to reduce oxygen content, minimize beer oxidation, and preserve the product’s flavor. - Precision Beer Filling

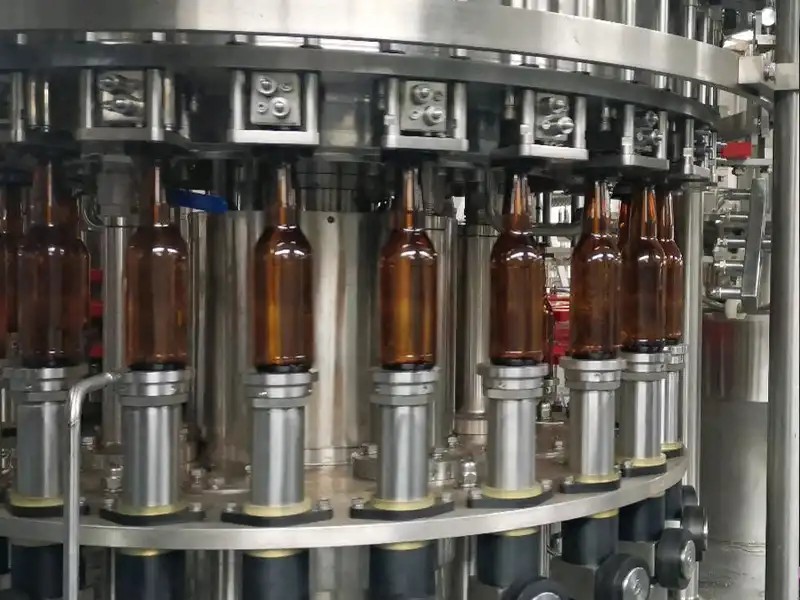

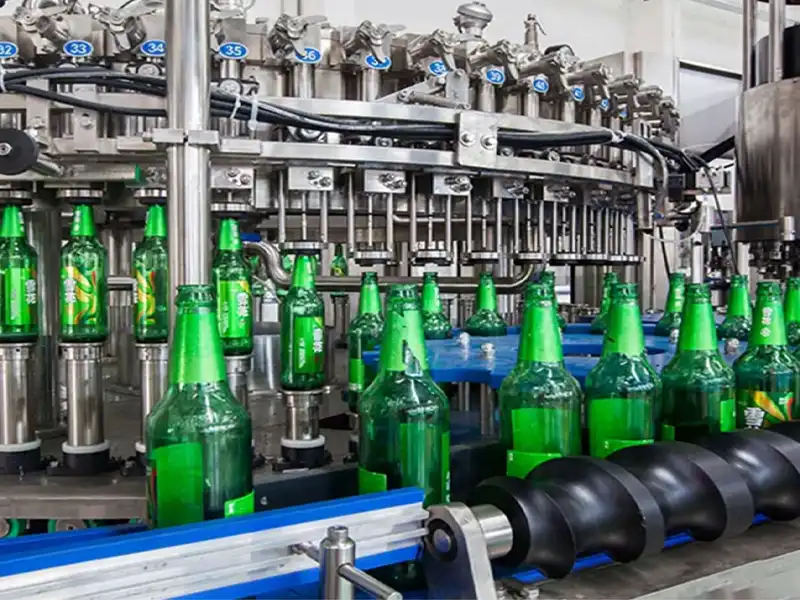

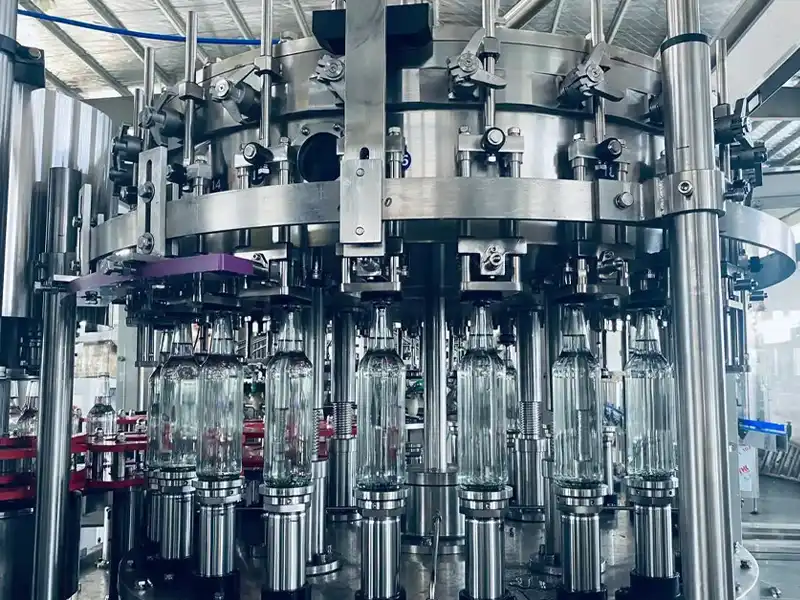

Filling valves perform precise filling based on preset liquid levels and pressure, controlling foam formation and improving filling efficiency. - Automatic Cap Sealing

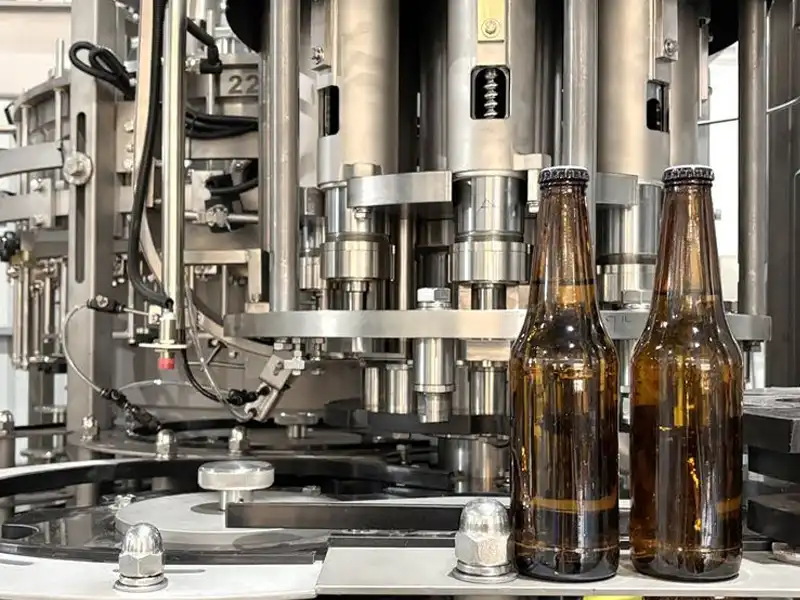

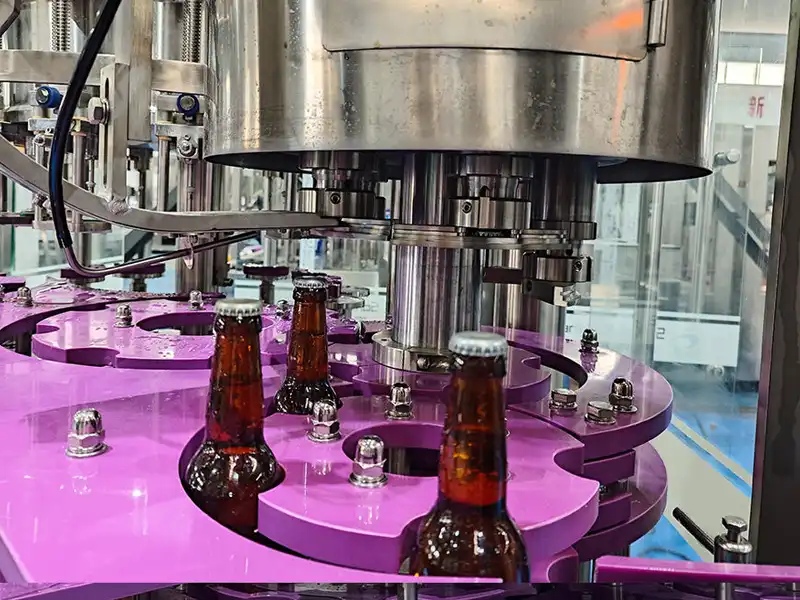

Filled bottles enter the capping machine, where caps are automatically sealed to prevent air leakage and contamination. - Labeling and Information Printing
Product labels, production dates, and batch information are applied using labeling machines and inkjet coders. - Back-End Packaging and Conveying

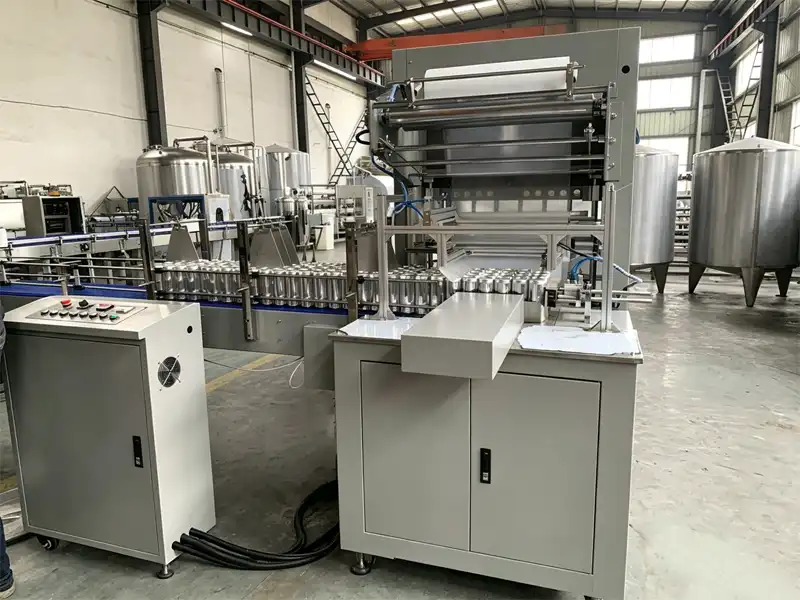

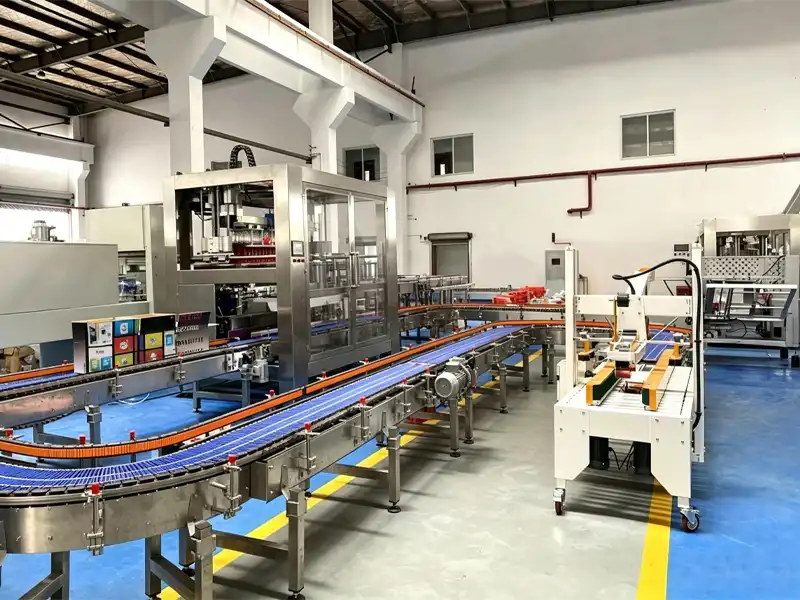

Finished products pass through case packing, shrink wrapping, or palletizing equipment to achieve automated packaging and outbound conveying. - PLC-Based Automatic Control
The entire line is centrally managed by a PLC control system, enabling speed adjustment, parameter monitoring, and equipment coordination to enhance production stability.
Specifications

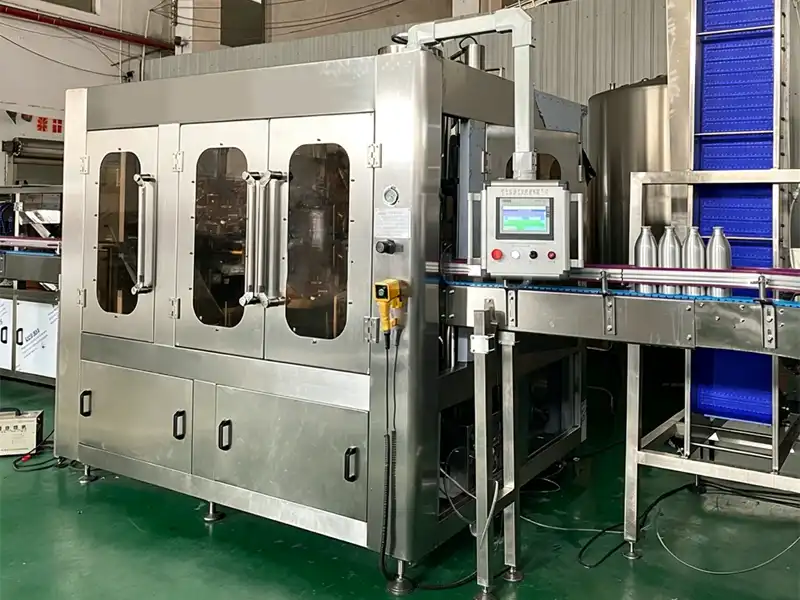

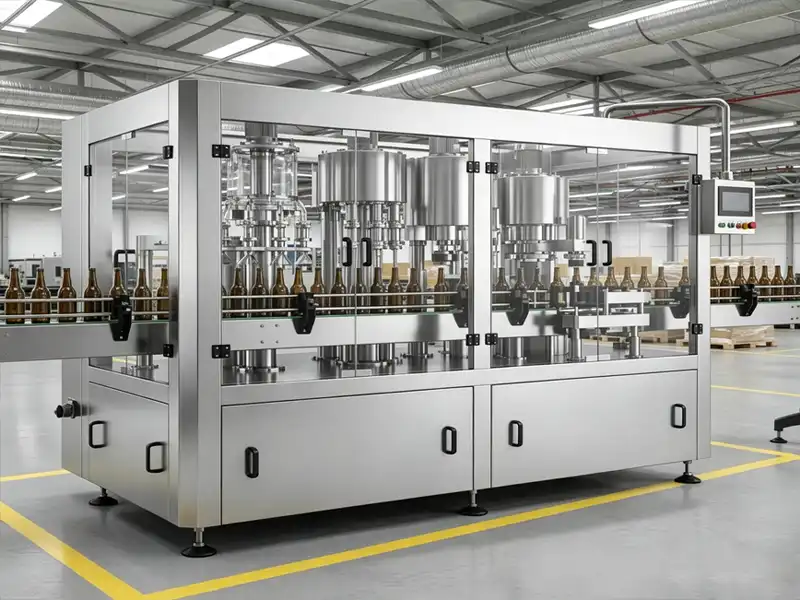

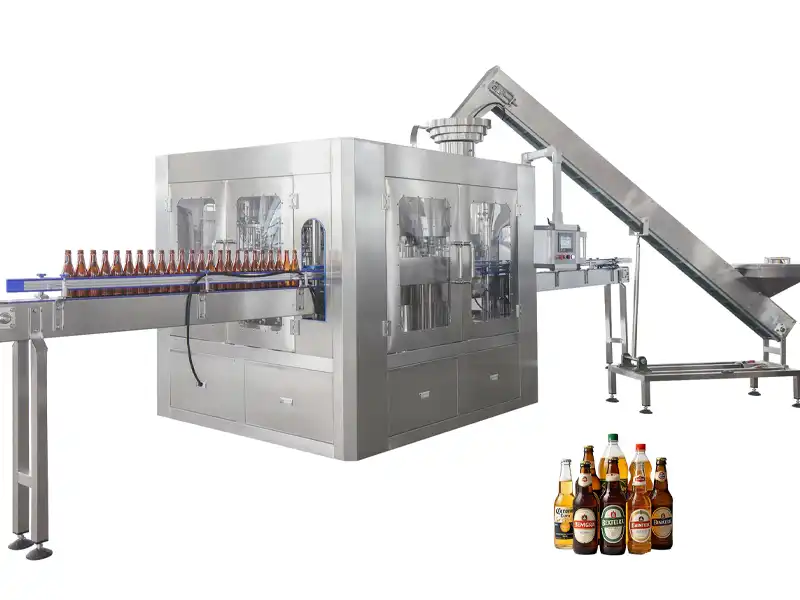

Beer bottling production line integrated beer rinsing-filling-capping 3-in-1 units are divided into 7 specifications according to production capacity. The following table lists complete technical indicators including output, applicable bottle range, power, fluid and gas consumption for your model selection.
| Parameter | XGF8-8-3 | XGF14-12-5 | XGF18-18-6 | XGF24-24-8 | XGF32-32-10 | XGF40-40-10 | XGF50-50-12 |
|---|---|---|---|---|---|---|---|
| Capacity (500ml bottle) | 2000–3000 BPH | 3000–6000 BPH | 6000–9000 BPH | 10000–12000 BPH | 12000–15000 BPH | 15000–18000 BPH | 20000–24000 BPH |
| Suitable Bottle Volume | 200–2000ml | 200–2000ml | 200–2000ml | 200–2000ml | 200–2000ml | 200–2000ml | 200–2000ml |
| Working Voltage | 380V/50Hz (Customizable) | 380V/50Hz (Customizable) | 380V/50Hz (Customizable) | 380V/50Hz (Customizable) | 380V/50Hz (Customizable) | 380V/50Hz (Customizable) | 380V/50Hz (Customizable) |
| Filling Precision | ≤±5mm (liquid level) | ≤±5mm (liquid level) | ≤±5mm (liquid level) | ≤±5mm (liquid level) | ≤±5mm (liquid level) | ≤±5mm (liquid level) | ≤±5mm (liquid level) |
| Filling Method | Normal pressure & temperature | Normal pressure & temperature | Normal pressure & temperature | Normal pressure & temperature | Normal pressure & temperature | Normal pressure & temperature | Normal pressure & temperature |
| Rinsing Water Pressure | 0.3Mpa | 0.3Mpa | 0.3Mpa | 0.3Mpa | 0.3Mpa | 0.3Mpa | 0.3Mpa |
| Water Consumption | 800L | 800L | 800L | 800L | 800L | 800L | 1000L |
| Air Source Pressure | 0.7Mpa | 0.7Mpa | 0.7Mpa | 0.7Mpa | 0.7Mpa | 0.7Mpa | 0.7Mpa |
| Air Consumption | 1m³/min | 1m³/min | 1m³/min | 1m³/min | 1m³/min | 1m³/min | 1m³/min |
| PET Bottle Specification | — | — | — | — | — | — | Dia. φ50–φ100mmHeight 150–320mm |
| Suitable Cap Type | — | — | — | — | — | — | Plastic screw cap |
Details
The beer filling production line showcases the core components and manufacturing details of a beer filling production line, including the filling system, conveyor system, control system, and packaging unit, providing a clear understanding of the equipment’s structure, process configuration, and production performance. Below are the details for the beer filling production line:
Features beer filling production line
Stainless Steel Parts
All liquid contact parts adopt food-grade stainless steel, meet food sanitation standards.
Low Failure Operation
Simple mechanical structure, convenient daily maintenance, and less downtime.

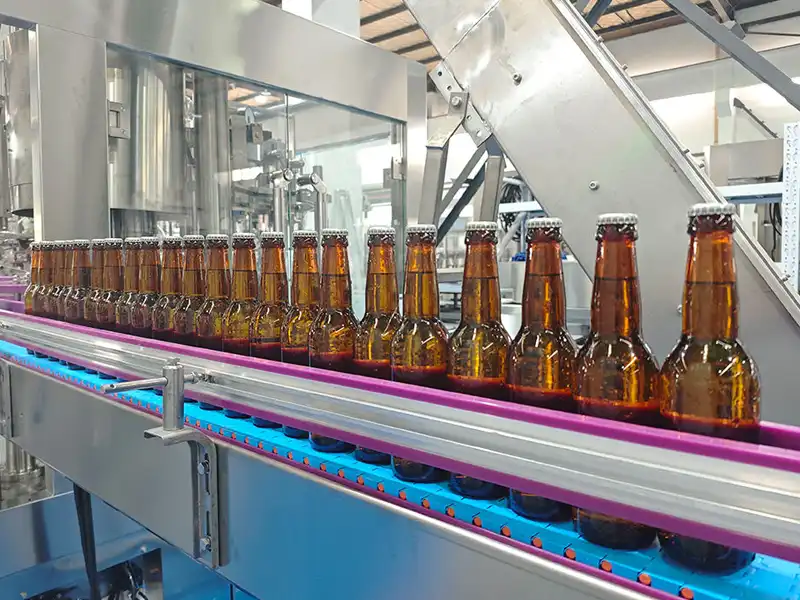

Automatic Conveying System
Smooth bottle transmission effectively prevents bottle collision and damage.
Customizable Supporting Line
Can match pasteurizer, labeling machine and carton packer as full production line.
Safe Sealing Performance
Tight cap sealing prevents beer oxidation and extends shelf life.
Easy Layout Arrangement
Linear streamline layout saves plant area and simplifies production management.
Application beer filling production line
- Beer Production Plant
Designed for large-scale beer filling, packaging, and automated production, suitable for high-volume, standardized beer assembly line operations. - Craft Brewery
Suitable for small-batch, multi-specification craft beer packaging needs, meeting the requirements for small-batch production of artisanal craft beers and specialty fruit-flavored beers. - Bottled Beer Production Line
Supports the washing, filling, capping, and labeling of glass-bottled beer. - Canned Beer Production

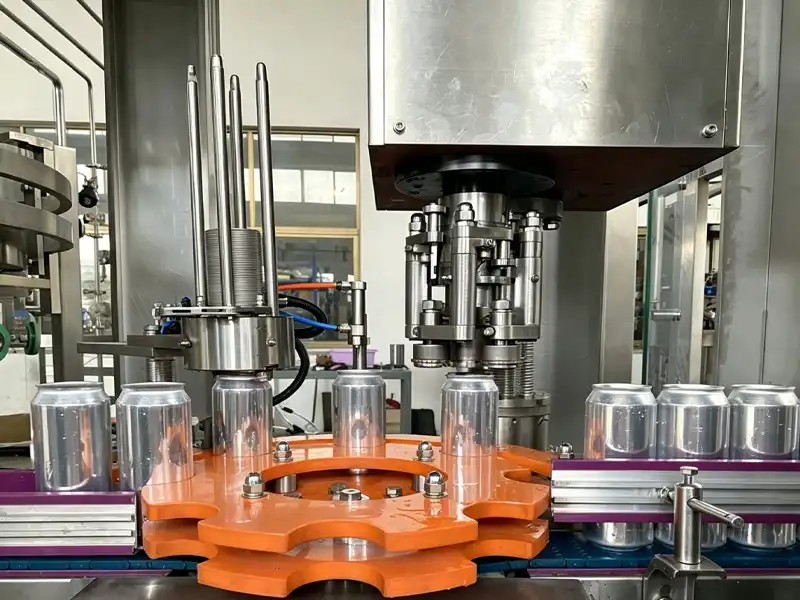

Equipped with filling and can-sealing equipment to achieve automated packaging of canned beer. - Alcoholic Beverage Companies
Used for the filling and production of beer and similar fermented beverages; capable of handling contract manufacturing orders for beer and carbonated beverages of various volumes. - Beverage Processing Plants
Can be expanded to include the filling and packaging of certain low-calorie beverages, compatible with the production of fruit beers, soda-based alcoholic drinks, and low-alcohol carbonated beverages.
Beer Production Plant
Craft Brewery
Bottled Beer Production Line
Canned Beer Production
Alcoholic Beverage Companies
Beverage Processing Plants
Custom beer filling production line
The beer filling production line can be customized based on factory floor space, production capacity requirements, bottle specifications, power supply standards, and ancillary equipment requirements, making it suitable for the diverse production needs of large, medium, and small breweries.
- Production Capacity
Select the appropriate model with a capacity of 2,000–24,000 bottles per hour to match your factory’s expected daily output. - Bottle Types
Supports a wide range of container types, including glass bottles and aluminum cans, with capacities ranging from 200 to 2,000 ml. - Equipment Configuration
Optional equipment includes bottle washers, filling machines, capping machines, labeling machines, and packaging equipment. - Automation Levels
We offer semi-automatic, fully automatic, and intelligent production solutions. - Production Layout
We design optimal conveyor routes and equipment layouts based on your factory’s available space, accommodating narrow, elongated, or small-scale facilities. - Power Supply Voltage
Standard 380V/50Hz; can be modified to accommodate industrial voltages and frequencies in various countries.
Beer Filling Production Line Manufacturer and Supplier
Snowy Owl Water is a professional beer filling production line manufacturer and supplier, providing complete automated solutions for beer filling, bottling, and packaging. We offer a wide range of beer filling equipment, including automatic beer bottling lines, brewery filling lines, craft beer filling systems, and customized beer production line solutions. Our solutions integrate key equipment such as bottle rinsing machines, beer filling machines, capping machines, CO₂ purging systems, labeling machines, coding machines, and packaging units. Designed for stable operation, accurate filling, and efficient production, our beer filling production lines help breweries maintain consistent product quality while meeting food and beverage industry hygiene standards.
Whether you are building a new brewery or upgrading an existing bottling system, we provide customized solutions based on your beer type, production capacity, bottle size, packaging format, factory layout, and automation requirements. From production line design and equipment selection to installation, commissioning, and after-sales support, our experienced team delivers complete beer filling production line solutions to improve production efficiency, reduce operating costs, and support long-term brewery development. Contact us today to receive a customized beer filling solution and competitive quotation.
